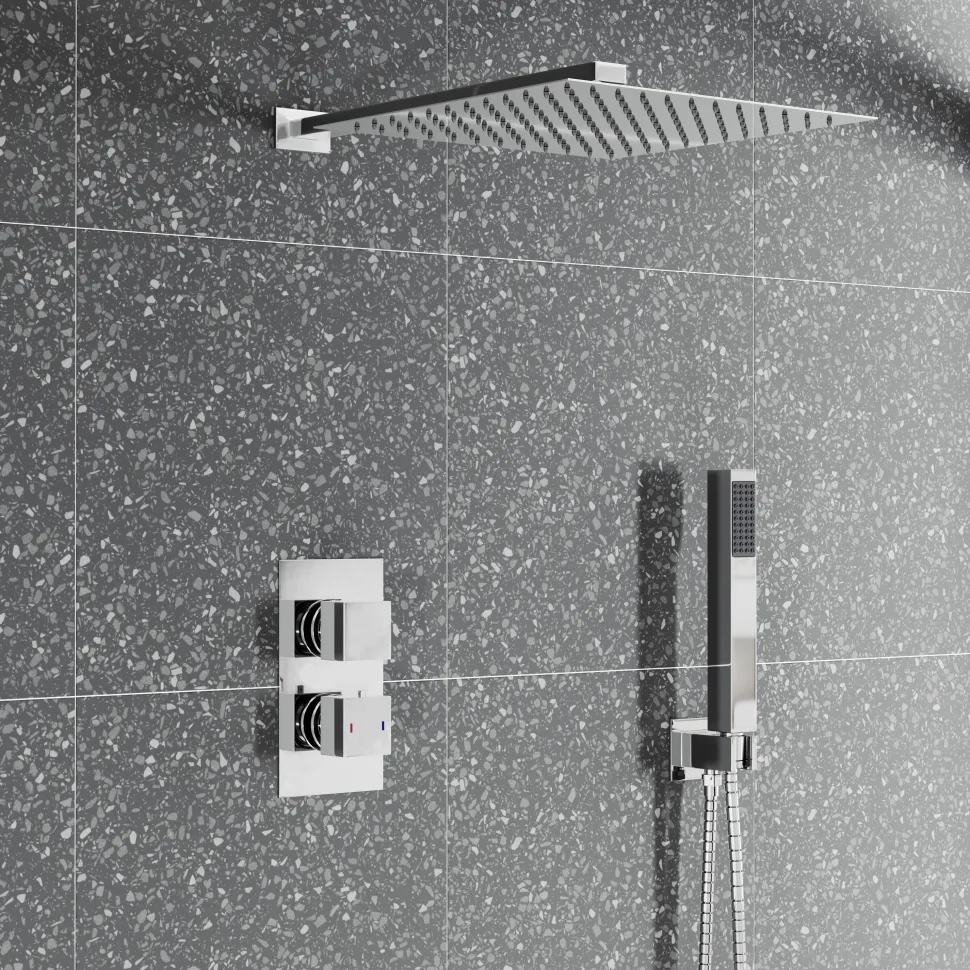

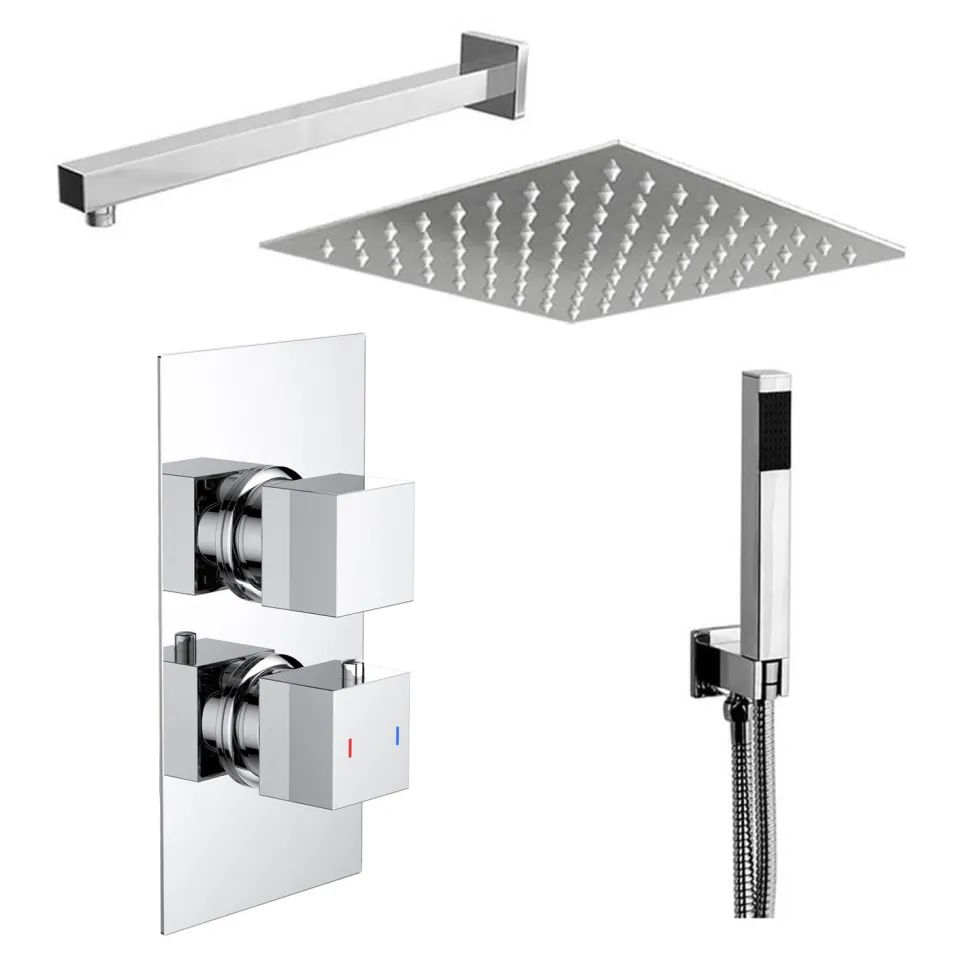

Archie Concealed Shower Valve, Fixed Shower Head & Handset

• Modern 2 outlet concealed design with dual handle control
• Sleek Chrome finish
• Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
• Anti Calc thermostatic cartridge – advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
• Ceramic disc technology prevents any unwanted leaks or drips
• Interchangeable backplate design allows portrait or landscape orientation
• Crafted from brass (valve body), stainless steel (backplate) & zinc alloy (handles)
• Minimum water pressure required: 0.5 bar
• WRAS approved
• Complies with BSEN 1111
• Covered by a 10 year manufacturer’s guarantee

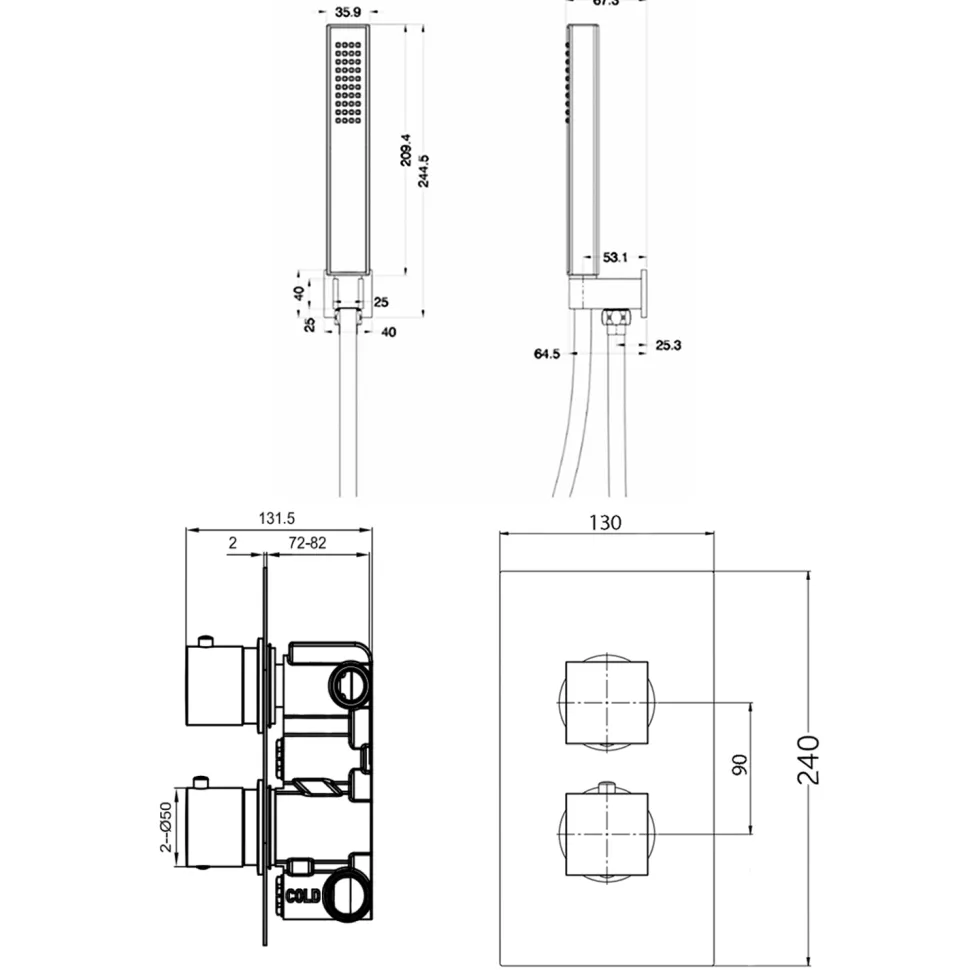

Dimensions:

• Height: 240mm
• Width: 130mm

Flow rates:

• 0.5 bar (l/min): 9.7
• 1.0 bar (l/min): 13.8
• 1.5 bar (l/min): 16.8
• 2.0 bar (l/min): 19.4
• 3.0 bar (l/min): 23.5
• 4.0 bar (l/min): 27.4
• 5.0 bar (l/min): 30.6

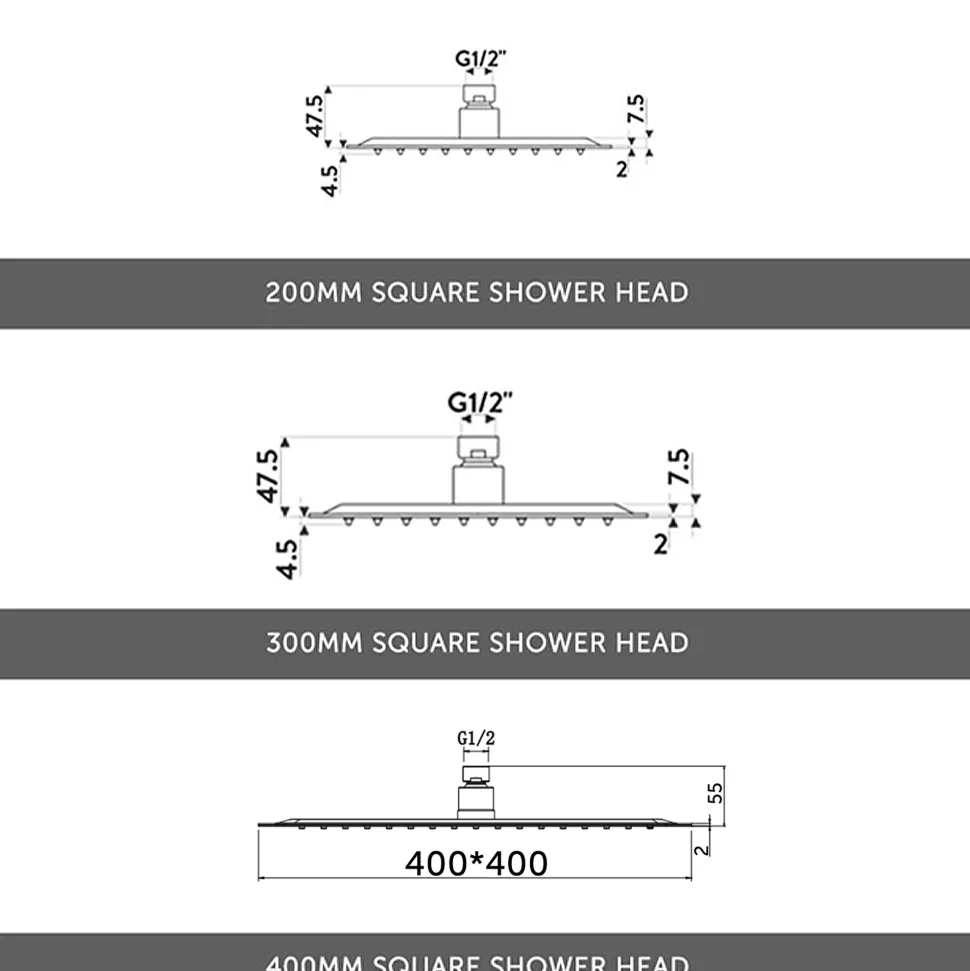

Shower Head Features:

• Choose from 200, 300, or 400mm
• Stainless steel shower head in a sleek Chrome finish
• 400mm head features air injection technology – providing softer showering experience & reducing water usage by mixing air with water
• Swivel joint easily adjusts the angle of the head
• Easy-clean rubber nozzles for easy cleaning
• 200 & 300mm heads covered by a lifetime manufacturer’s guarantee

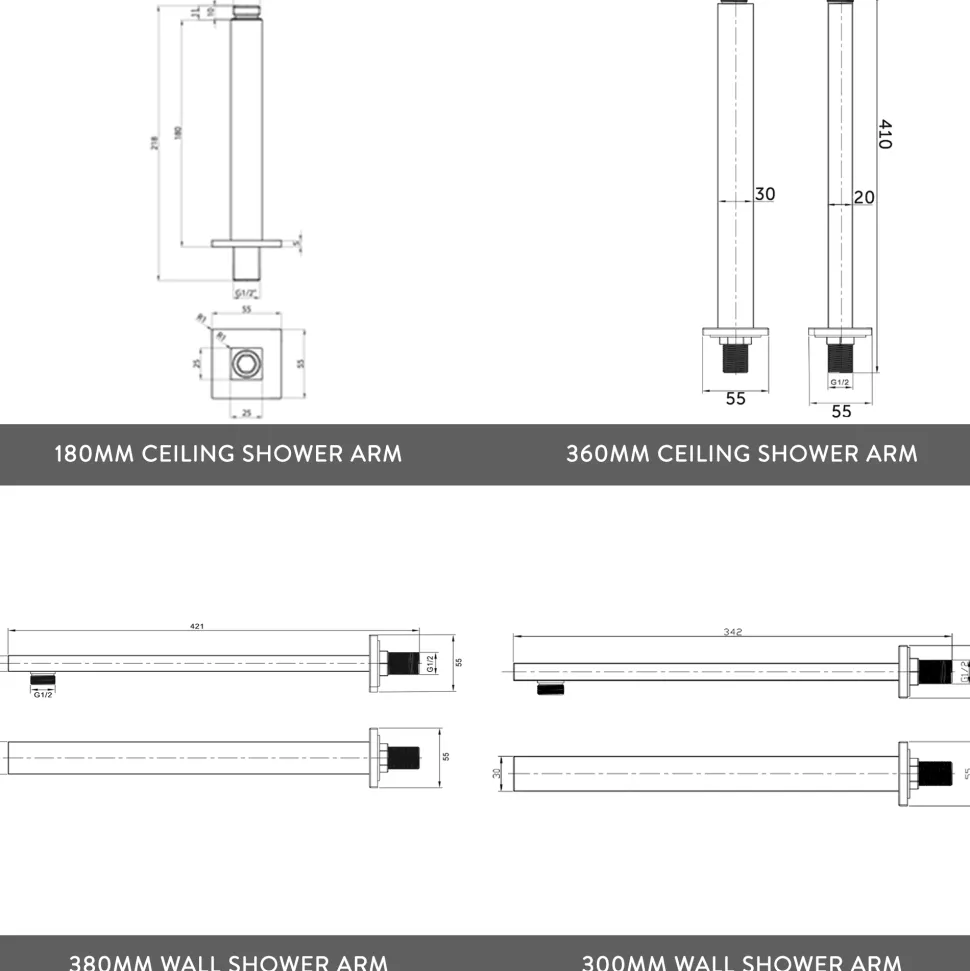

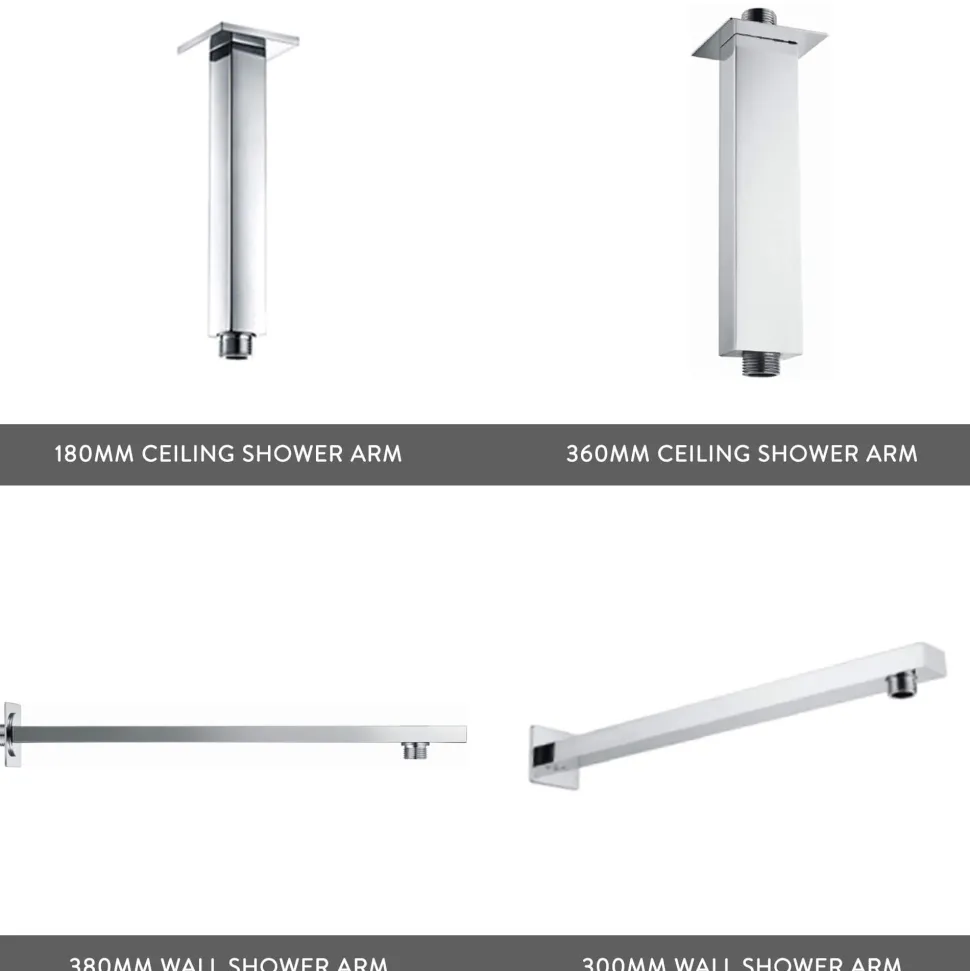

Shower Arm Features

• 2 orientations and 4 sizes to choose from
• 180mm Ceiling Arm: lifetime guarantee
• 360mm Ceiling Arm: 5 year guarantee
• 300mm Wall Arm: 5 year guarantee
• 380mm Wall Arm: 2 year guarantee

Shower Handset with Wall Outlet & Hose Features:

• Kit includes: shower handset with easy clean nozzles, 1.5m anti-rust shower hose & wall outlet elbow with integrated shower handset
• Modern concealed design in a high-shine chrome finish
• Constructed from brass (outlet elbow) and ABS plastic (handset) ensure that the handset is light and easy to manoeuvre
• Covered by a 2 year manufacturer’s guarantee
