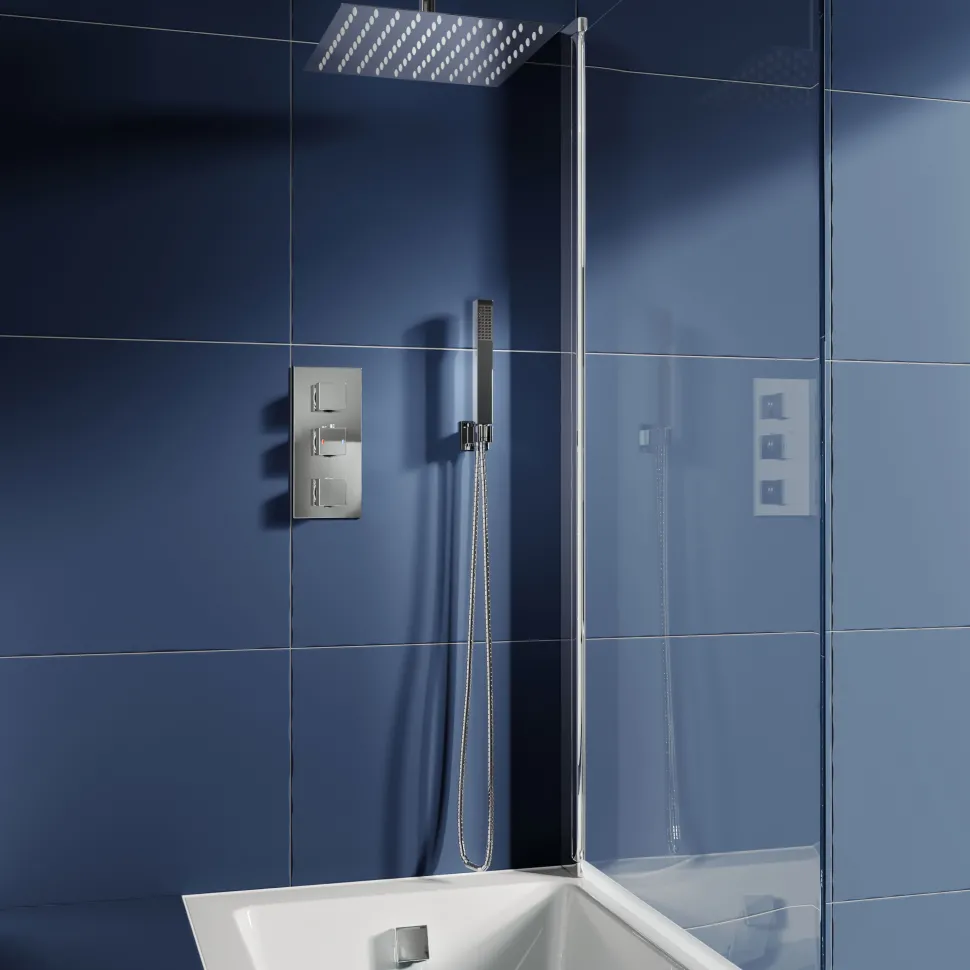

Carter Concealed Shower Valve, Fixed Shower Head, Handset & Overflow Bath Filler

Complete your bathroom with the Carter Concealed Shower Valve, Fixed Shower Head, Handset & Overflow Bath Filler. With a 400mm luxurious rainfall shower head, a minimalist pencil handset, and a discreet overflow bath filler, you are soon on your way to making your own little oasis.

You can make your shower setup uniquely yours by picking from two different ceiling shower arms. Plus, the valve can be installed either vertically or horizontally, so you can customize the look of your bathroom with just a few simple changes.

Bath fillers are a fantastic way to give your bathroom a modern touch and declutter the space by replacing traditional bath taps on your bath ledge. What’s even better is that they’re a breeze to install, and you can conveniently control all three accessories using the same valve.

Inside the valve, you’ll discover our advanced Anti Calc Thermostatic Cartridge, meticulously engineered to tackle common problems like water temperature fluctuations and reduced flow due to hidden blockages. In order to take advantage of this nifty technology – just press the safety button on the thermostatic handle, then rotate it from the hottest to the coldest setting. This simple action enables the cartridge to efficiently clear away dirt, limescale, and debris that may have built up over time.

Valve Features:

• Modern 3 outlet concealed design with triple handle control
• Sleek Chrome finish
• Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
• Anti Calc thermostatic cartridge – advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
• Ceramic disc technology prevents any unwanted leaks or drips
• Interchangeable backplate design allows portrait or landscape orientation
• Crafted from brass (valve body), stainless steel (backplate) & zinc alloy (handles)
• WRAS approved
• Complies with BSEN 1111
• Covered by a 10 year manufacturer’s guarantee

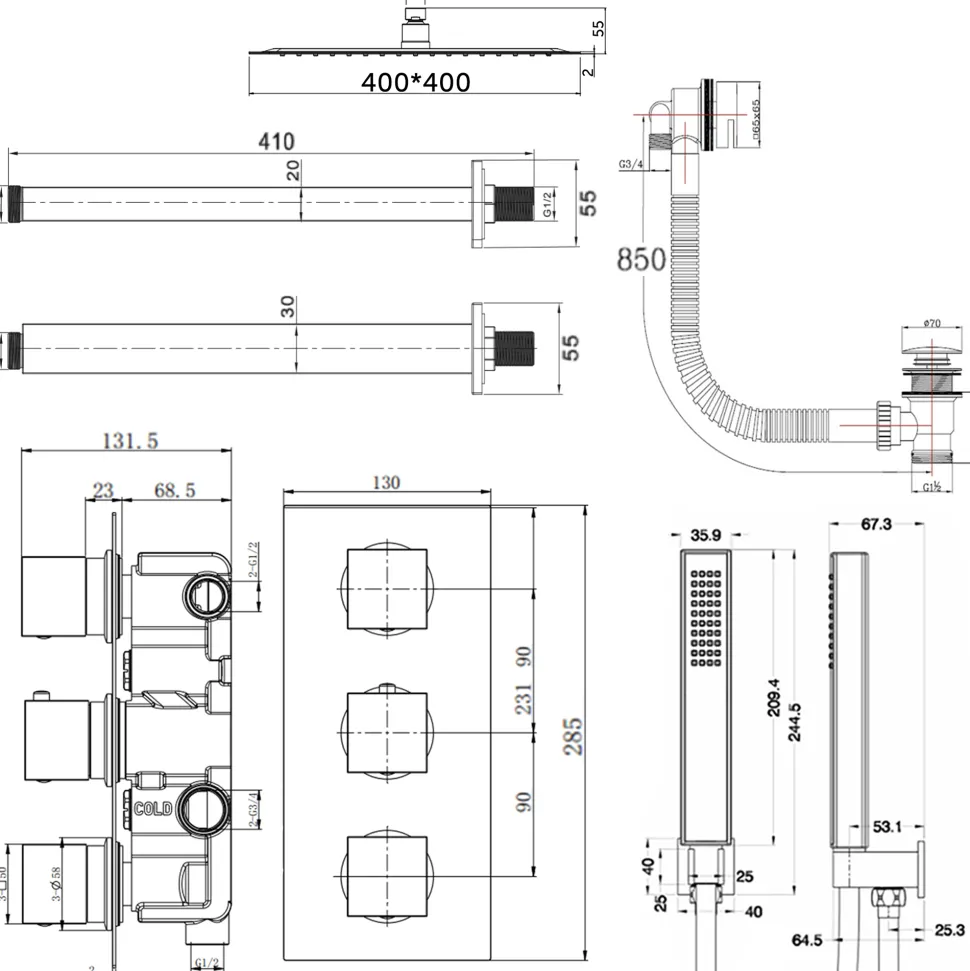

Dimensions:

• Height: 285mm
• Width: 130mm

Flow rates:

• 1.0 bar (l/min): 14.0
• 1.5 bar (l/min): 17.1
• 2.0 bar (l/min): 19.8
• 3.0 bar (l/min): 24.4
• 4.0 bar (l/min): 28.1
• 5.0 bar (l/min): 31.6

Shower Head Features:

• Slimline 400mm stainless steel shower head in a polished Chrome finish
• Air Injection Technology – provides softer showering experience & reduces water usage by mixing air with water
• Swivel joint easily adjusts the angle of the head
• Easy-clean rubber nozzles for easy cleaning

Shower Arm Features:

• 2 shower arms to choose from to customise your shower
• Constructed from brass with a dazzling Chrome finish
• 180mm ceiling arm – Lifetime guarantee
• 360mm ceiling arm – 5 year guarantee

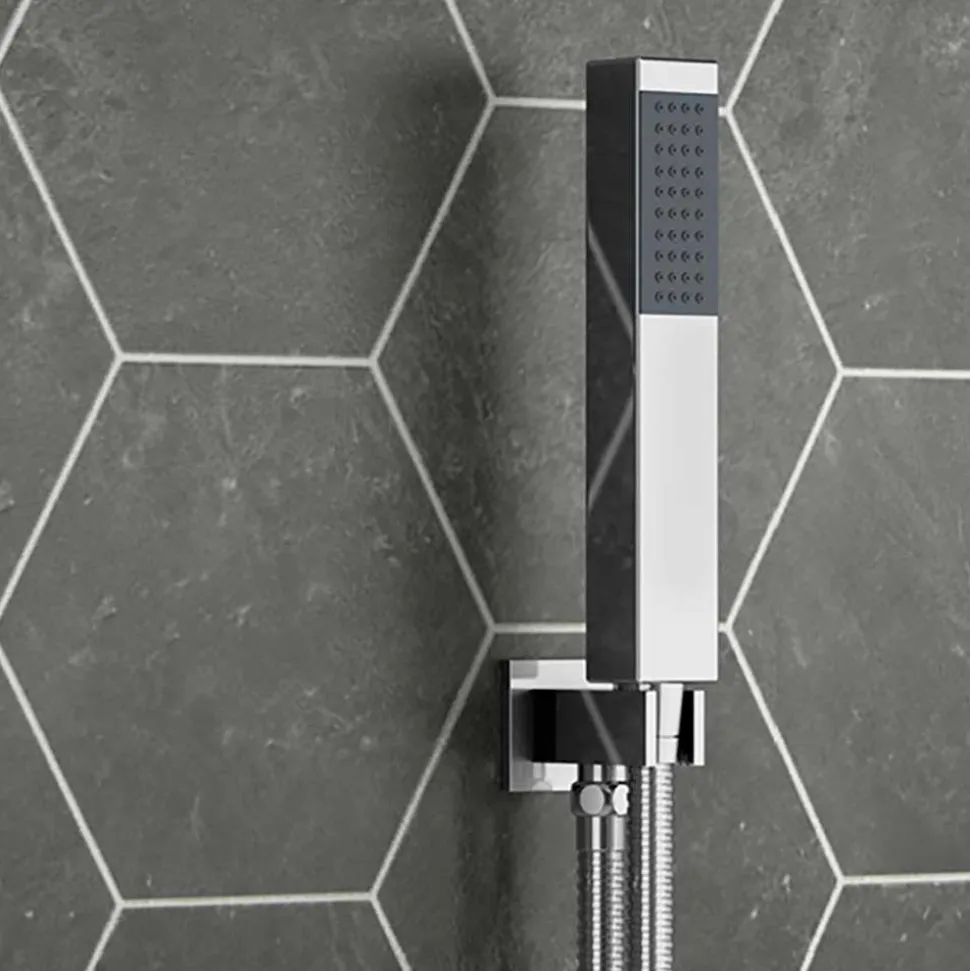

Shower Handset with Wall Outlet & Hose Features:

• Kit includes: shower handset with easy clean nozzles, 1.5m anti-rust shower hose & wall outlet elbow with integrated shower handset
• Modern concealed design in a high-shine Chrome finish
• Constructed from brass (outlet elbow) and ABS plastic (handset) ensure that the handset is light and easy to manoeuvre
• Covered by a 2 year manufacturer’s guarantee

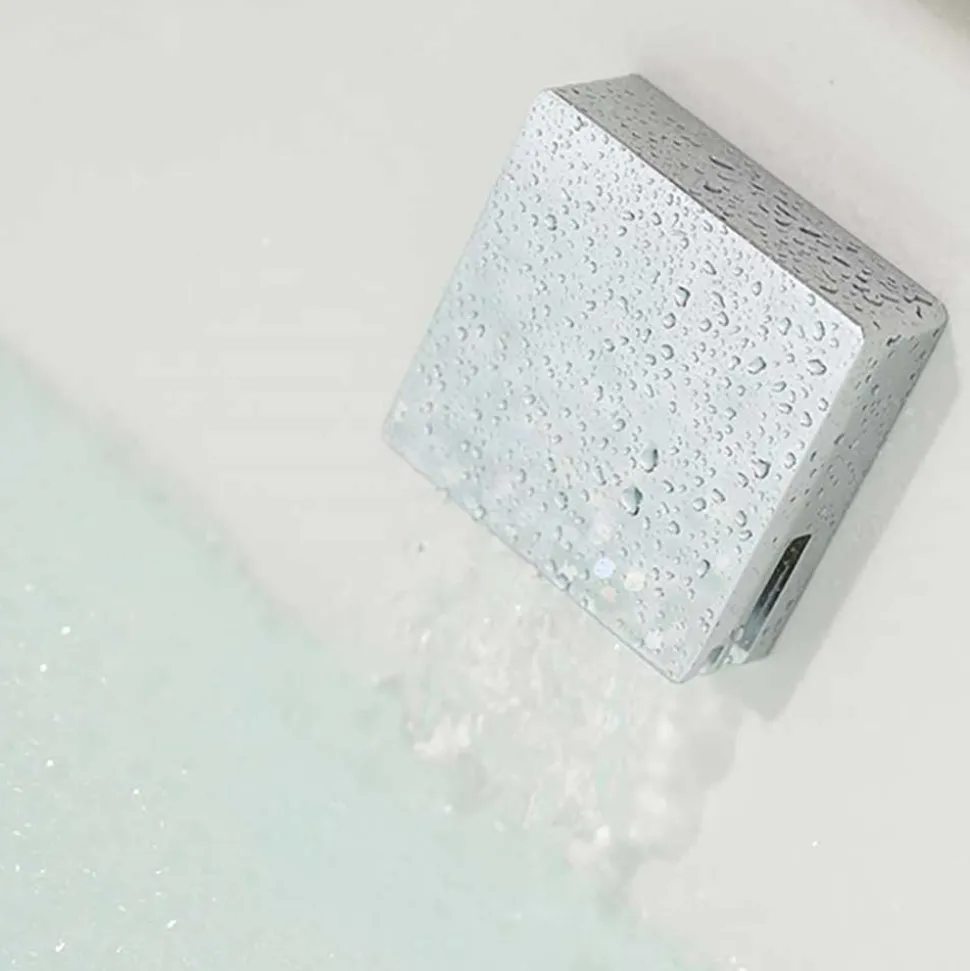

Overflow Bath Filler Features:

• Chrome-plated overflow bath filler
• Clicker waste included
• Minimum water pressure required: 1 bar
