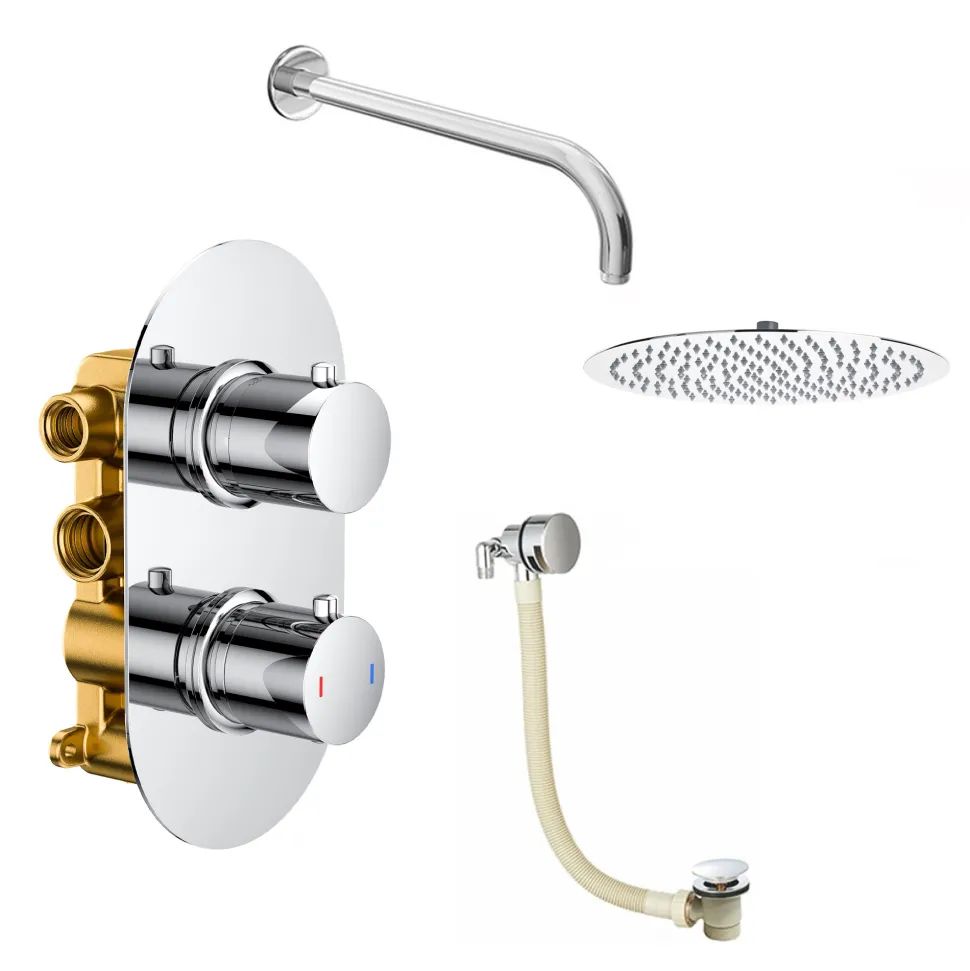

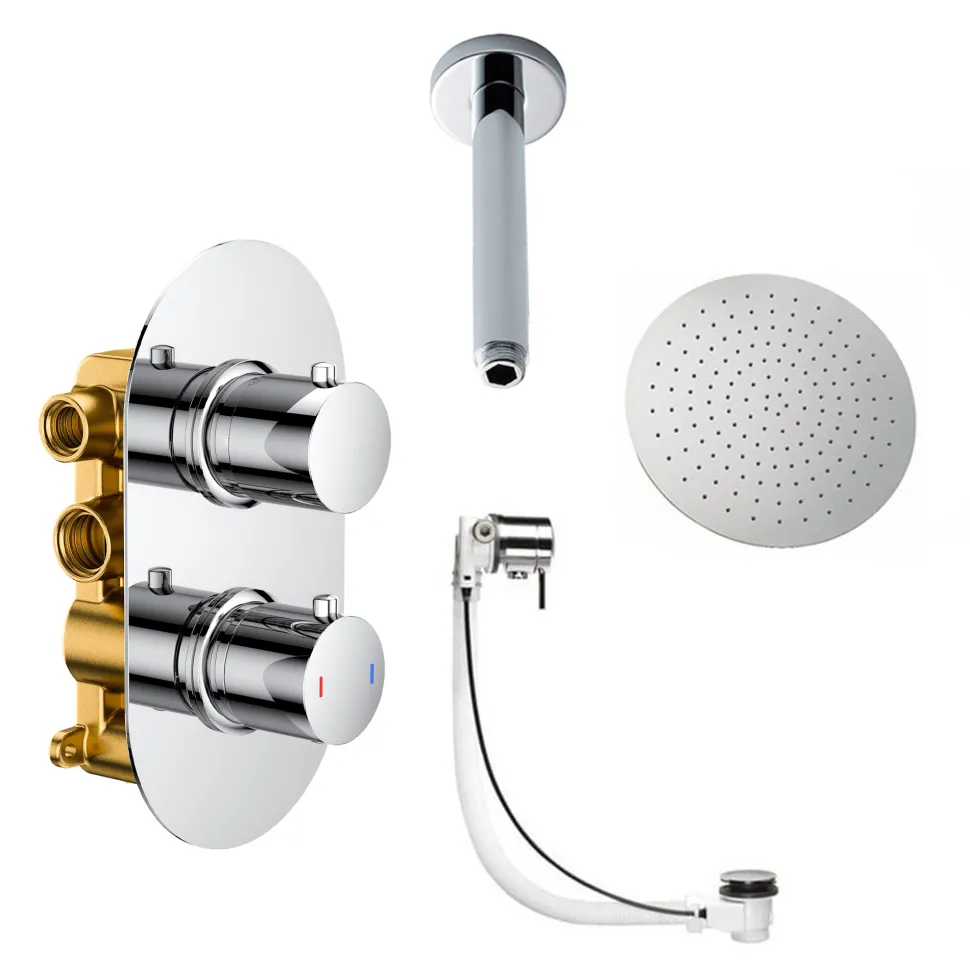

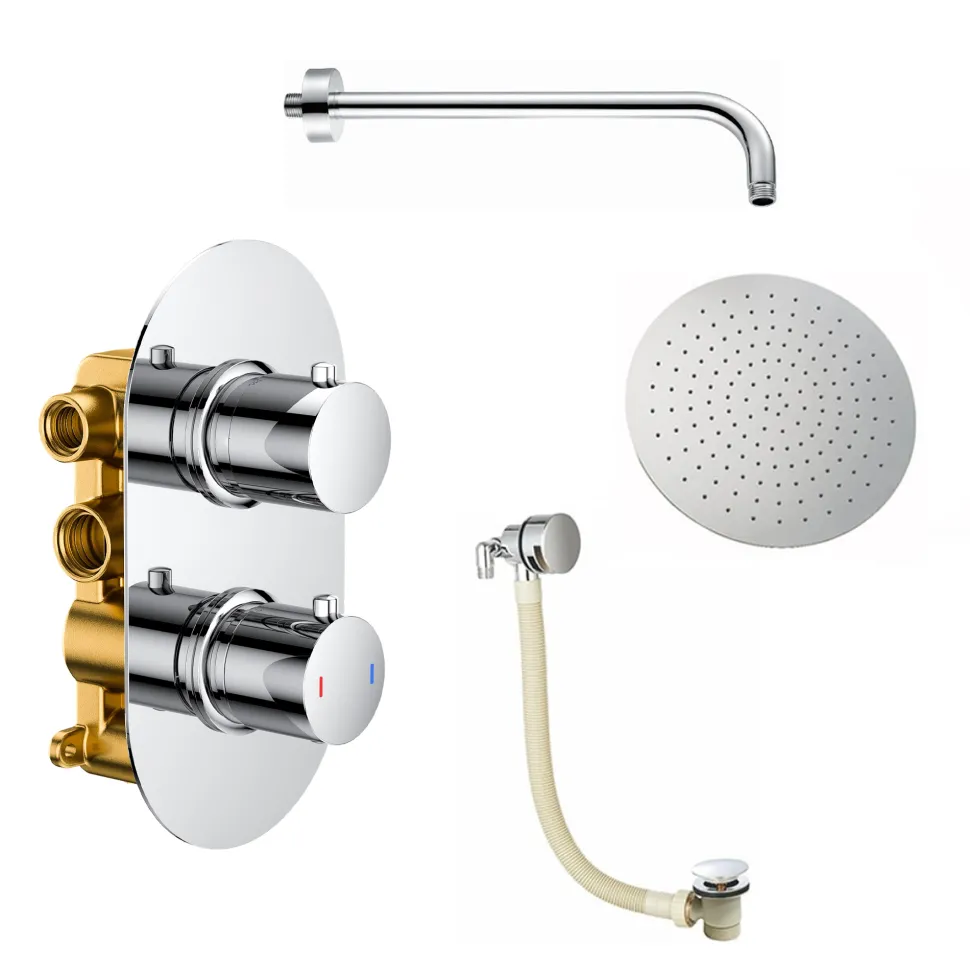

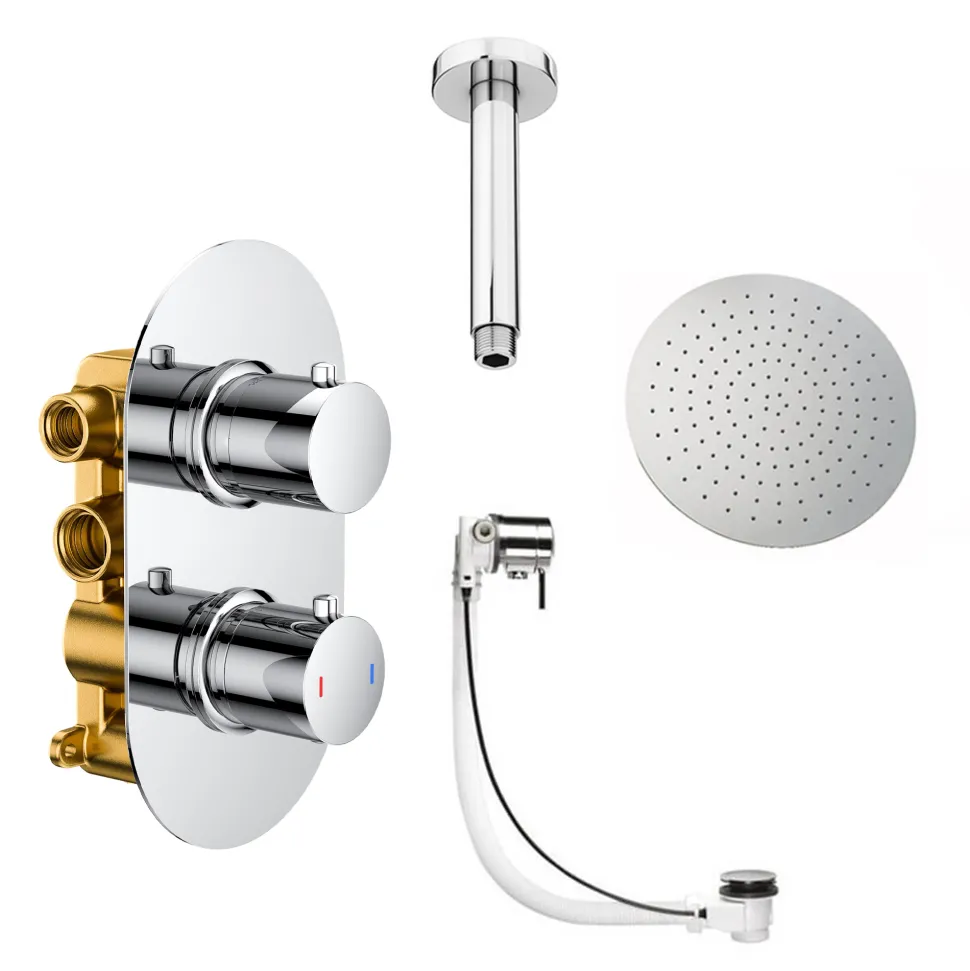

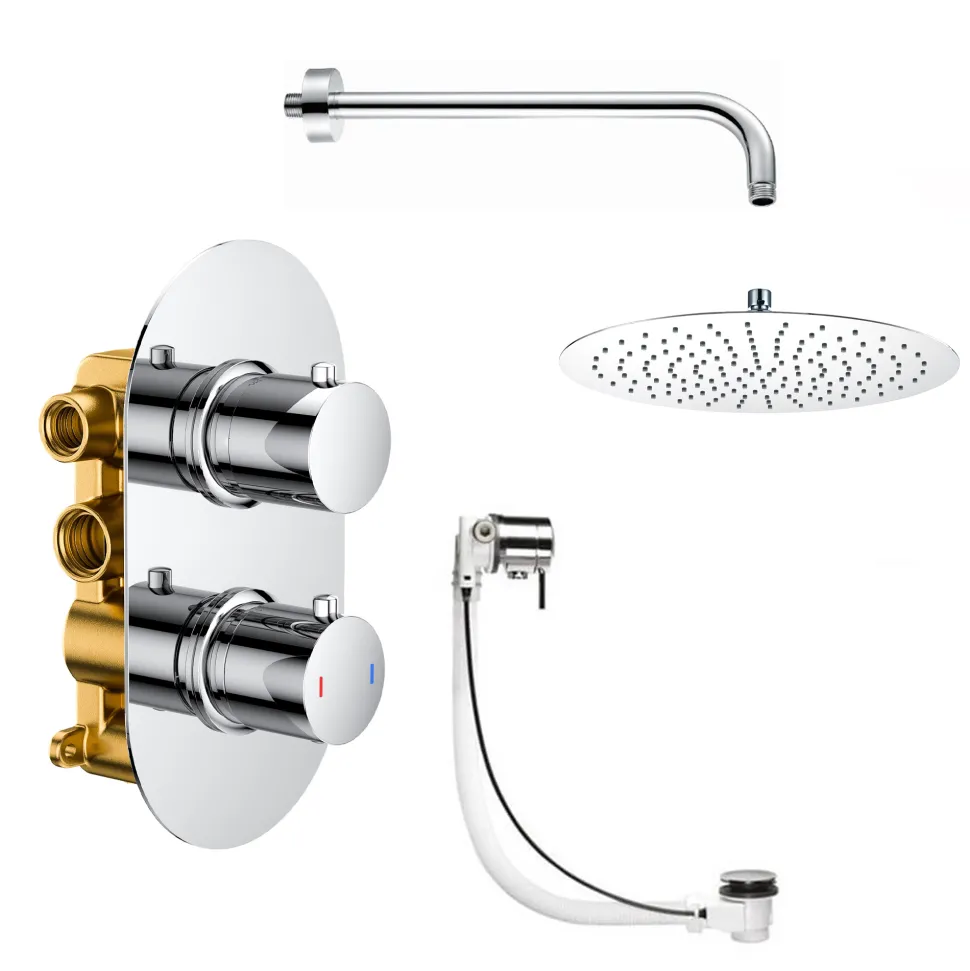

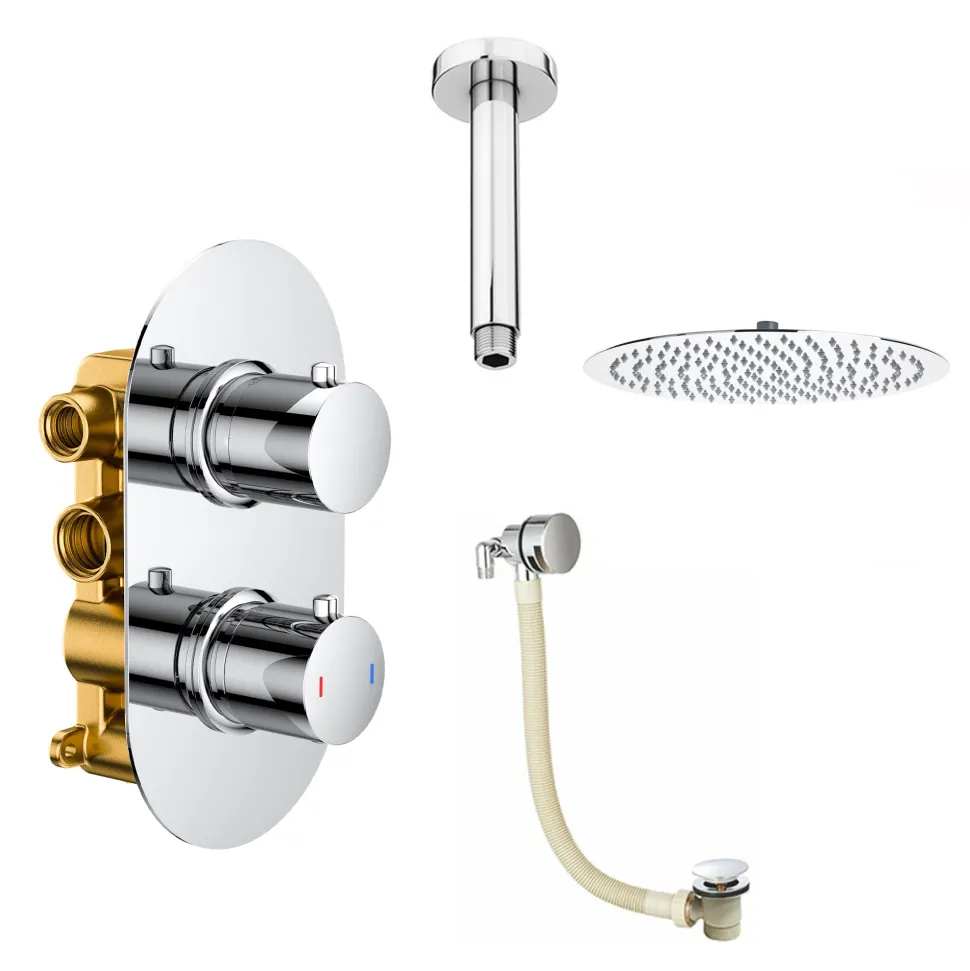

Imogen Concealed Shower Valve, Fixed Shower Head & Overflow Bath Filler

Elevate your bathroom with the Drench Imogen Concealed Shower Valve, Fixed Shower Head & Overflow Bath Filler by adding a touch of luxury to your space. Imogen offers a range of choices to help you create the bathroom you’ve always wanted.

Customise your setup by choosing from three different shower heads, four shower arms, and an overflow bath filler, allowing for complete personalisation. The Imogen valve also gives you the option to install it either vertically or horizontally, so you can set up your shower just the way you like it.

Inside the valve, you’ll find our advanced Anti Calc Thermostatic Cartridge, designed to effectively address common issues like changes in water temperature and reduced water flow due to hidden blockages. Simply press down on the safety button on the thermo handle, then turn the handle to the hottest setting and then to the coldest setting, allowing the cartridge to efficiently flush out dirt, limescale, and debris that can accumulate over time.

Bath fillers are a great way to modernise your bathroom, getting rid of the clutter from traditional bath taps on your bath ledge. They’re also easy to install, and you can control both your shower and bath filler using the same valve.

Valve Features:

• Modern 2 outlet concealed design with dual handle control
• Sleek Chrome finish
• Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
• Anti Calc thermostatic cartridge – advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
• Ceramic disc technology prevents any unwanted leaks or drips
• Interchangeable backplate design allows portrait or landscape orientation
• Crafted from high grade brass (valve body), stainless steel (backplate) & zinc alloy (handles)
• Minimum water pressure required: 0.5 bar
• WRAS approved
• Complies with BSEN 1111
• Covered by a 10 year manufacturer’s guarantee

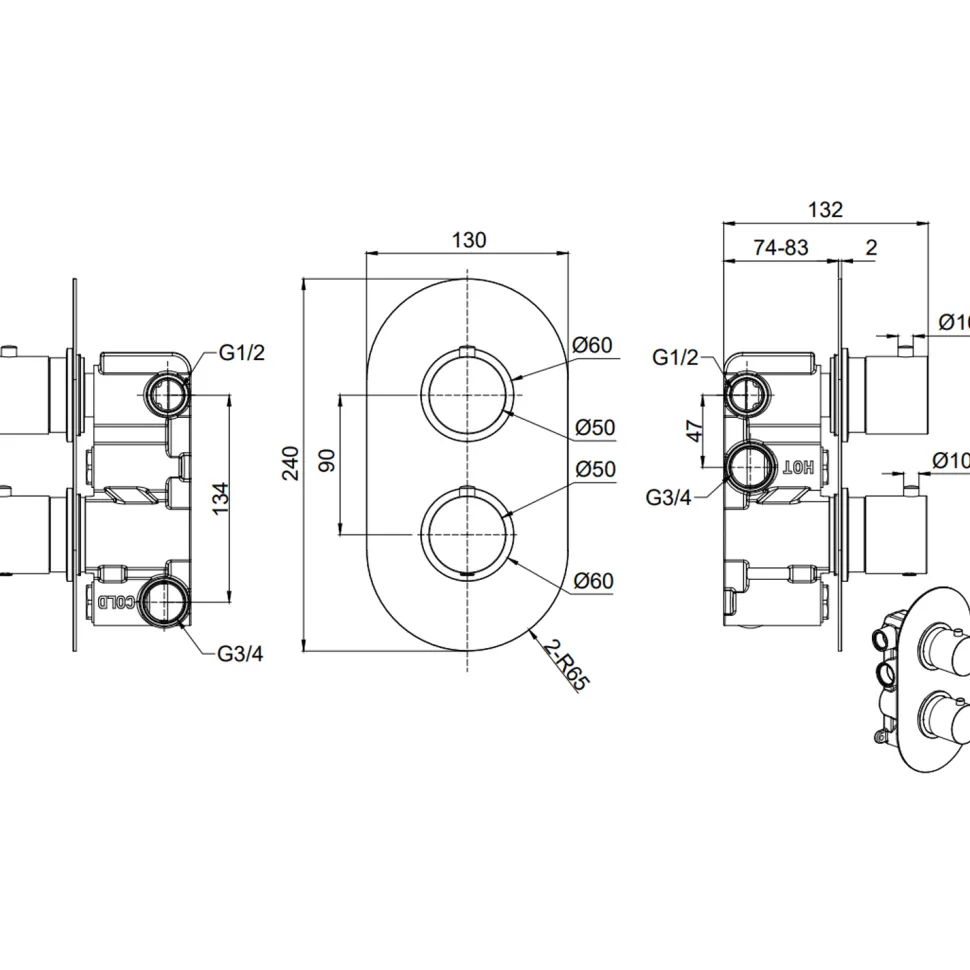

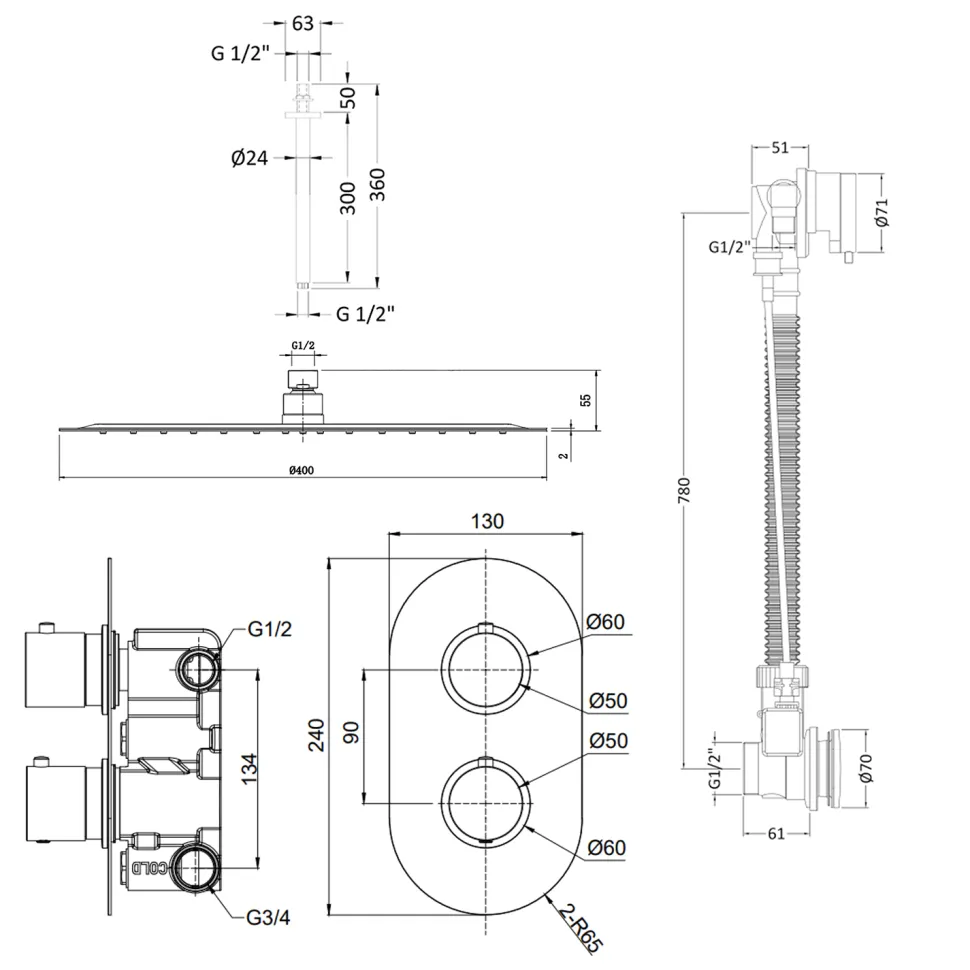

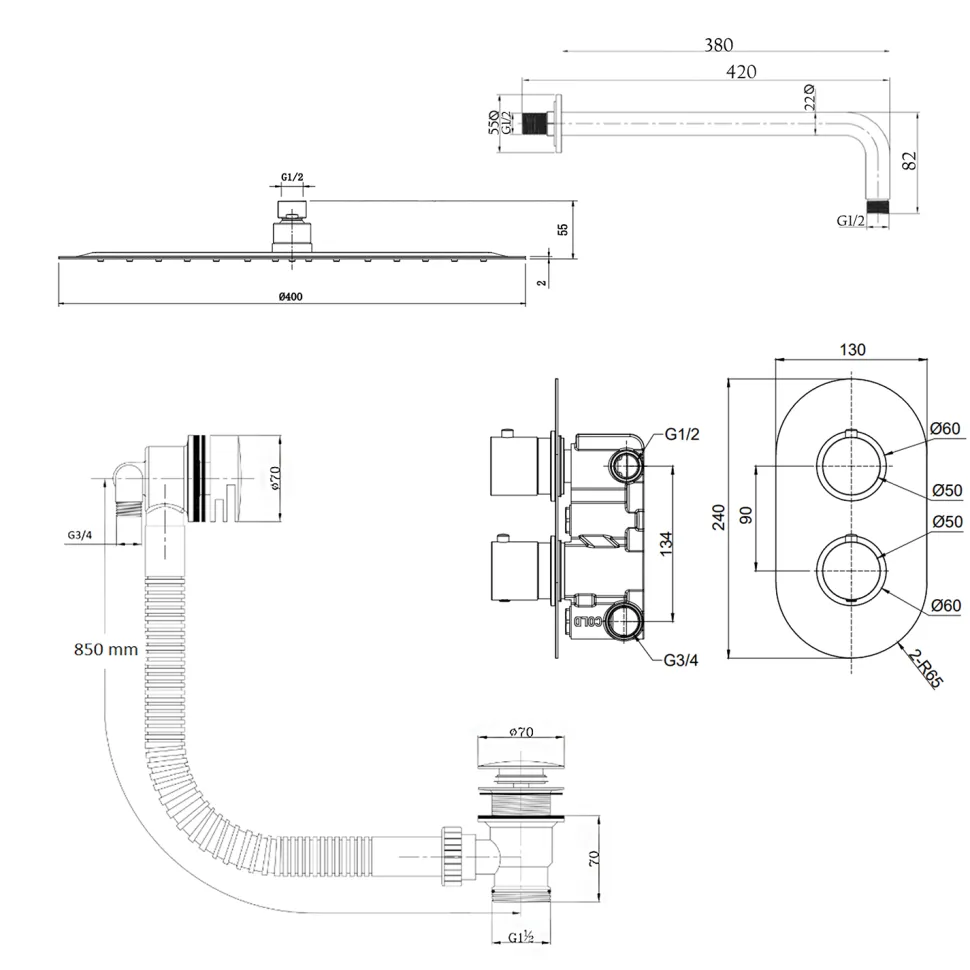

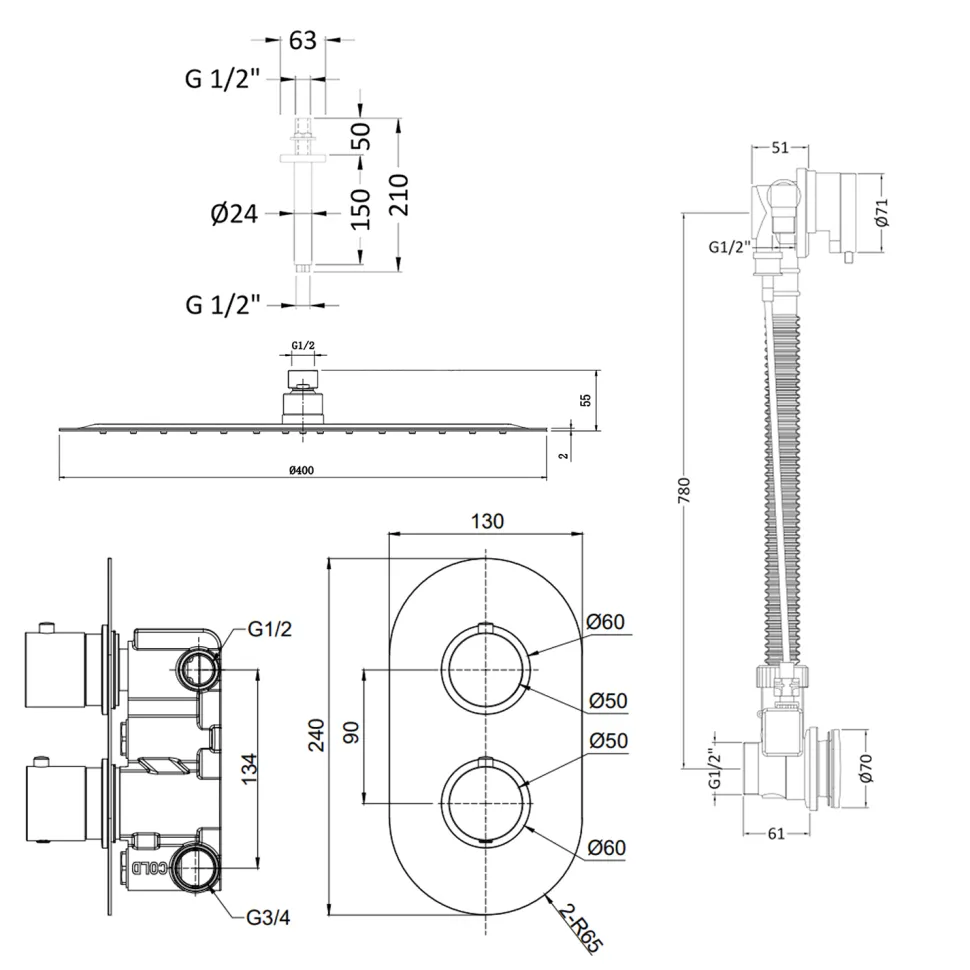

Dimensions:

• Height: 240mm
• Width: 130mm

Flow rates:

• 0.5 bar (l/min): 9.4
• 1.0 bar (l/min): 13.4
• 2.0 bar (l/min): 19.0
• 3.0 bar (l/min): 23.2
• 4.0 bar (l/min): 27.1
• 5.0 bar (l/min): 29.9

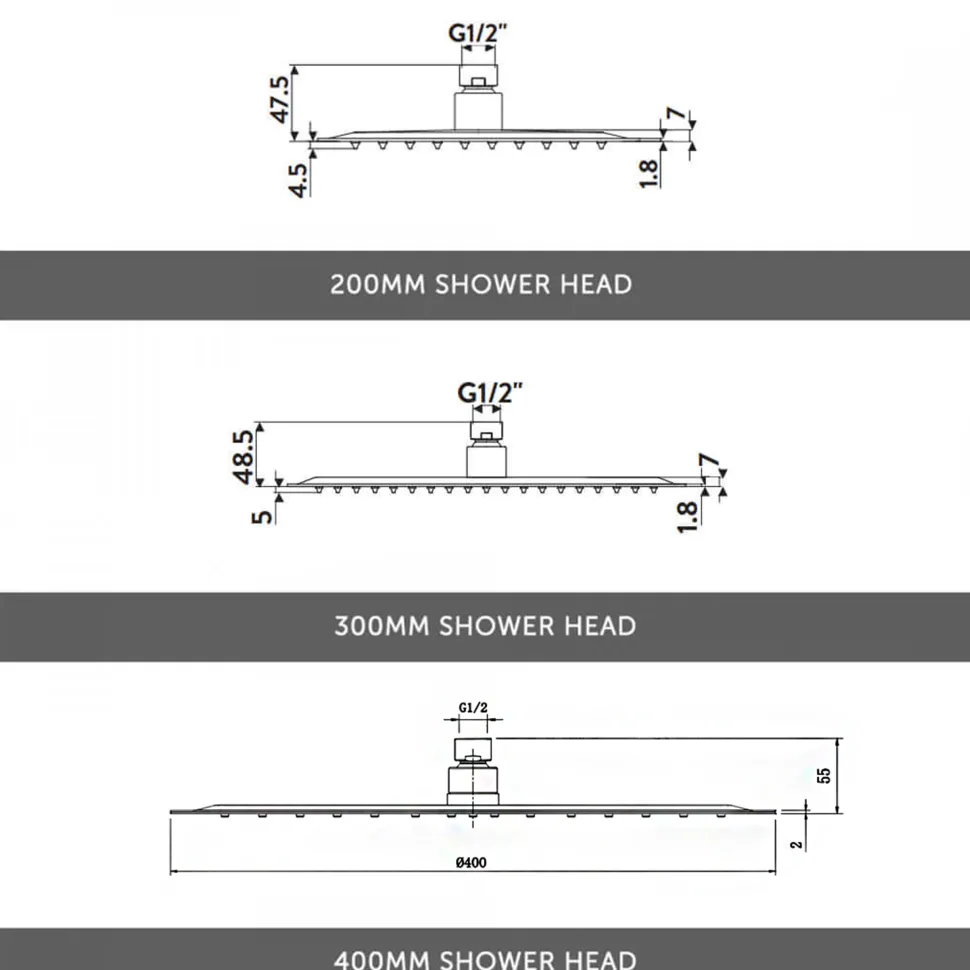

Shower Head Features:

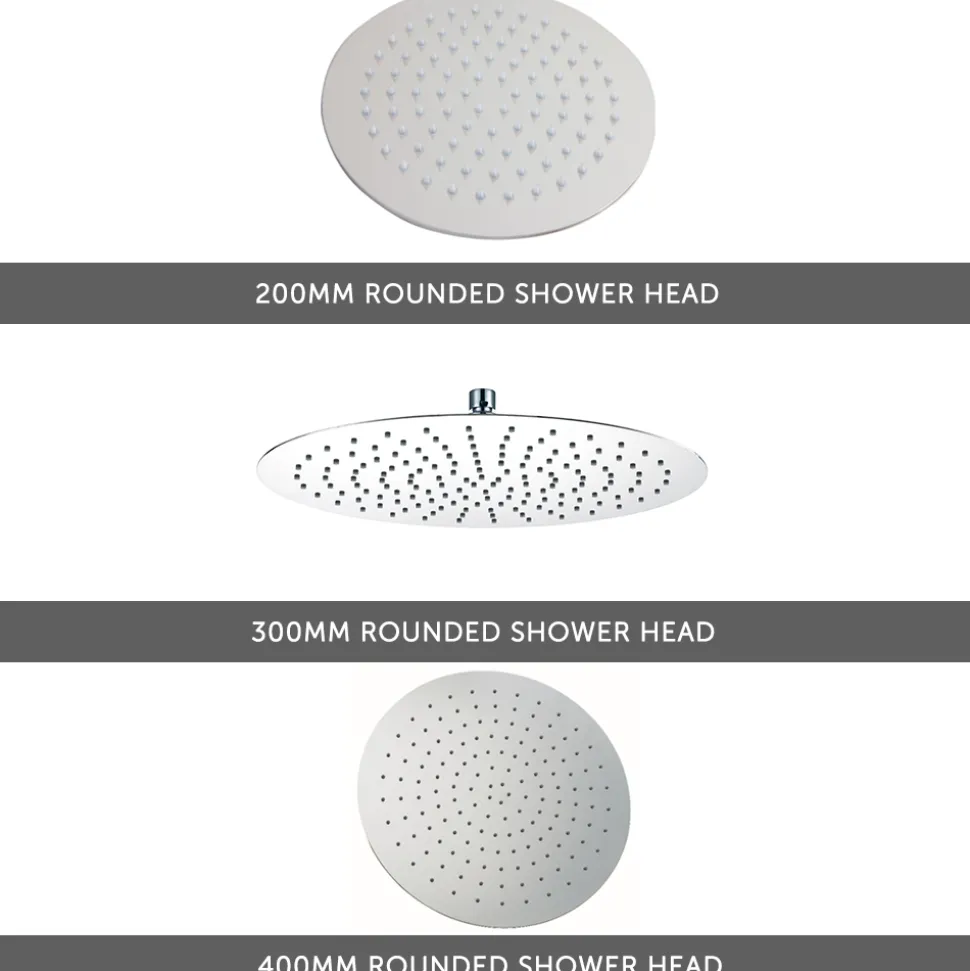

• Choose from 200, 300, or 400mm
• Stainless steel shower head in a sleek Chrome finish
• Swivel joint easily adjusts the angle of the head
• 400mm head features air injection technology – providing softer showering experience & reducing water usage by mixing air with water
• Easy-clean rubber nozzles for easy cleaning
• 200 & 300mm heads covered by a lifetime manufacturer’s guarantee

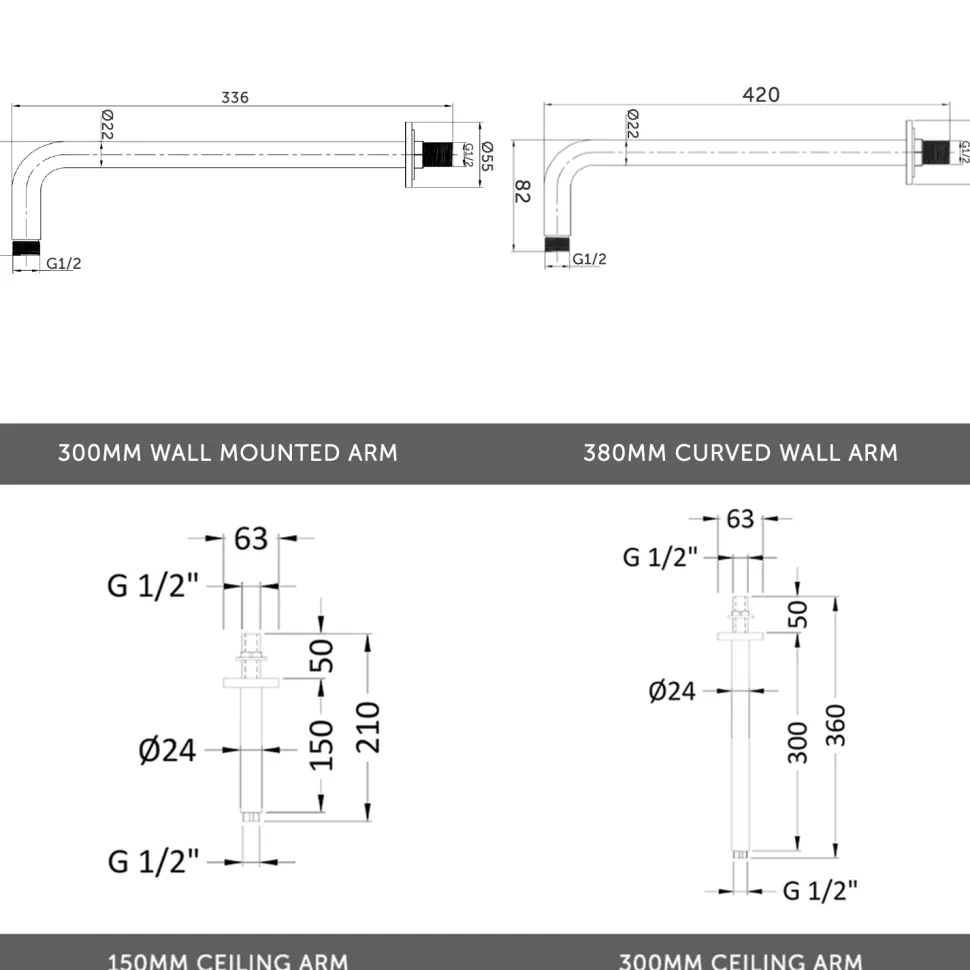

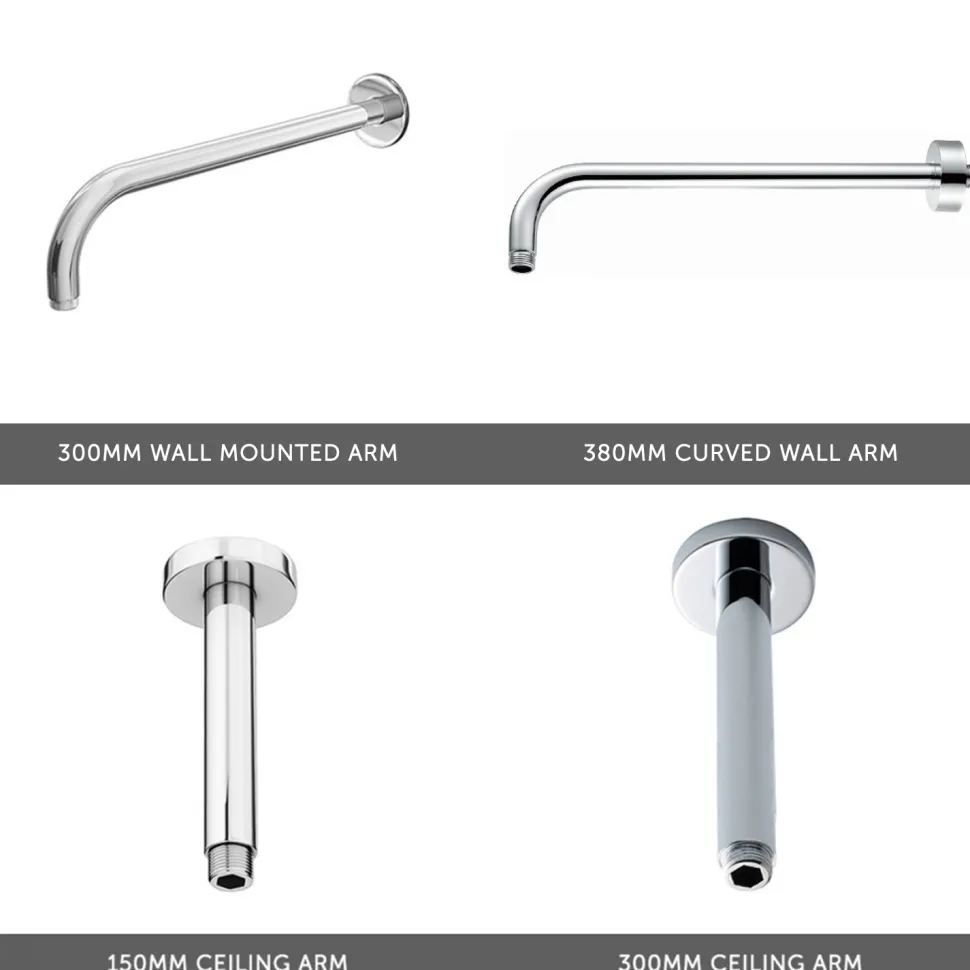

Shower Arm Features:

• 4 shower arms to choose from to fully customise your shower
• Constructed from brass with a dazzling Chrome finish
• 150 & 300mm ceiling arms – 10 year manufacturer’s guarantee
• 300mm & 380mm curved wall arms – 5 year manufacturer’s guarantee

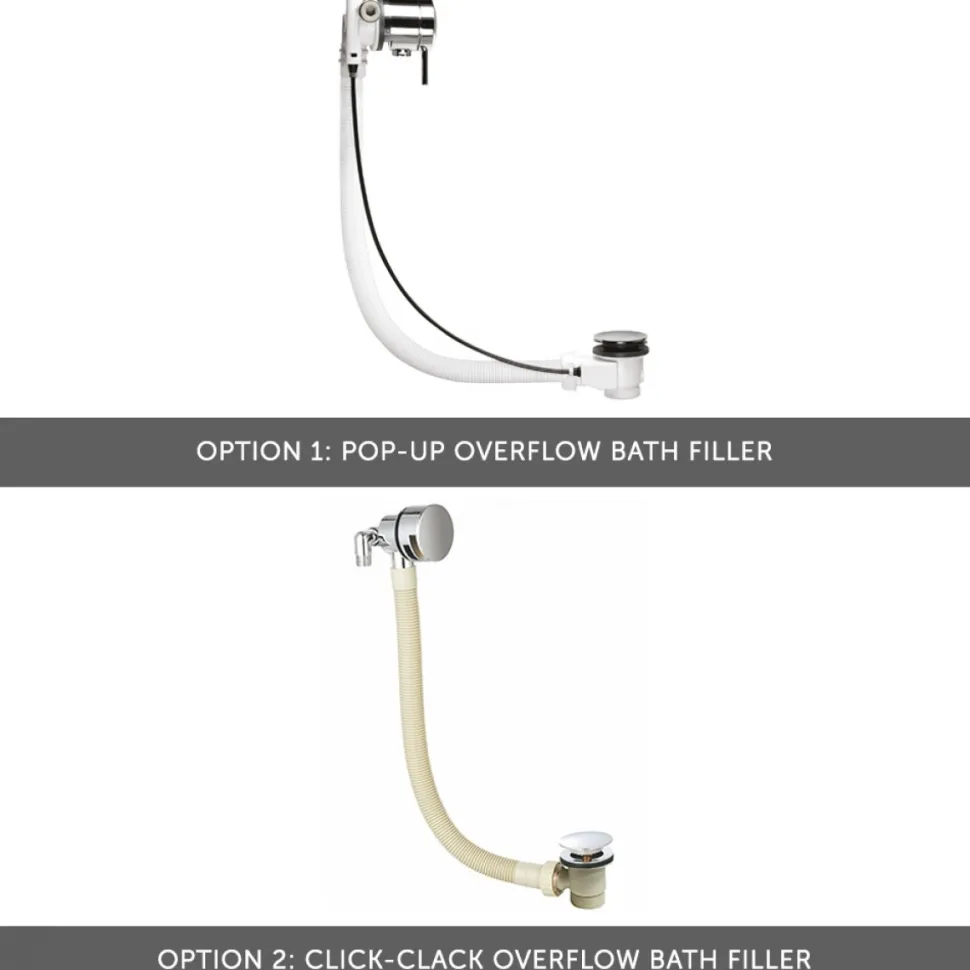

Overflow Bath Filler with Pop-up Waste Features:

• Integrated overflow bath filler and pop up bath waste
• Constructed from brass with a Polished Chrome finish
• Suitable for baths up to 30mm thick
• Minimum water pressure required: 0.5 bar

Overflow Bath Filler with Clicker Waste Features:

• Integrated overflow bath filler and click clack bath waste
• Constructed from brass with a Polished Chrome finish
• Minimum water pressure required: 1 bar
